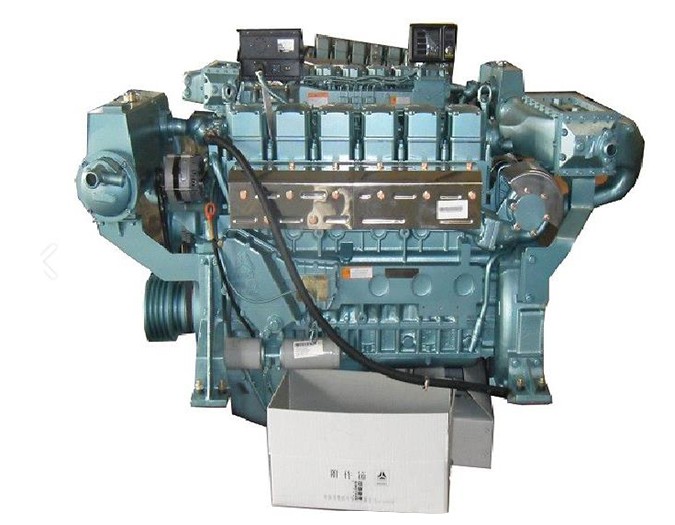

Description
Main power engines are devided into two categories, basic use and fishing boat use with speed 1500r/min,1800r/min,2100r/min(or 2000r/min).

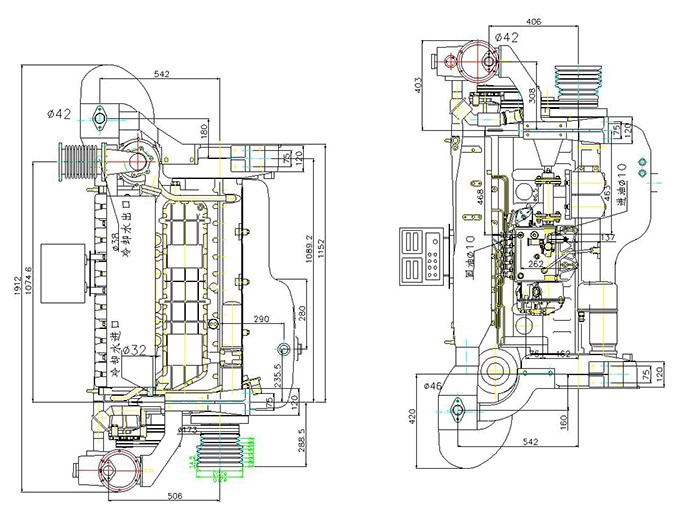

The basic includes turbocharged intercooled engine model and turbocharged model, and the turbocharged intercooled models are the same as truck engines, but adding marine special spares, such as marine intercooler, sea-fresh water heat-exchanger, monitor, PS8500 fuel injection pump(with parking electromagnet),sea water pump, SAE1# flywheel case, 14'flywheel, and flywheel connecting flange, supporter, the installment size is 740*1089.2.
the distance from crankshaft center height is 135.
The fishing boat used engines based on the basic used have been changed into 4 slots fishing pulley, connecting flange(M14*1.5), diesle filter installed in the air-intake pipe and also add diesle pre-filter installed in the air-intake pipe, the installing size is 694*1145.5*140cm.
Main power engines can choose 6135flywheel case, when replace with SAE1 flywheel case, please change the flywheel case and connecting flange.
|
Item Model |
WD615.68C |
WD615.68DC |
|||||||
|
|
61568C01N |
61568C02N |
61568C03N |
61568DC01N |
61568DC02N |
61568 DC03N |
|||
|
Type |
4 strokes, water-cooled, in-line, direct-injection |
||||||||
|
Method of aspiration |
Turbocharged and intercooled |
||||||||
|
Number of cylinders |
6 |
||||||||
|
Bore×stroke (mm×mm) |
126×130 |
||||||||
|
CR/SHF rotation direction（from free end） |
clockwise |
||||||||
|
Firing order |
1-5-3-6-2-4 |
||||||||
|
Displacement (L) |
9.726L |
||||||||
|
Rated power/Speed(kW/r/min) |
200/ 1800 |
205/ 2100 |
180/ 1500 |
185/ 1500 |
190/ 1800 |
175/ 1500 |
|||
|
Overload power/Speed (kW/r/min) |
220/ 1858 |
225.5/ 2163 |
198/ 1545 |
203.5/ 1500 |
209/ 1800 |
192.5/ 1500 |
|||
|
Rated fuel consumption rate (g/kW▪ h) |
205 |
210 |
205 |
205 |
210 |
210 |
|||
|
Maximum combustion pressure(MPa) |
14.5 |
||||||||
|
Compression ratio |
17:1 |
||||||||
|
Compression pressure |
>2000 |
||||||||
|
Oil-fuel consumption ratio |
0.4 |
||||||||
|
Method of starting |
Electric starter |
||||||||
|
Turbocharge ratio |
2.08 |
||||||||
|
Idle speed (r/min) |
600 |
700 |
|||||||
|
Crankshaft type |
integrated |
||||||||
|
Net weight (kg) |
1050 |
||||||||
|
Dimension L×W×H (mm) |
1920x830x1170 |
||||||||
